2.007 Kit Part: Compression Springs

www.asbg.com

Note: The springs available in the kit may not be the same as the following springs.  You should verify all data with bench level experiments.

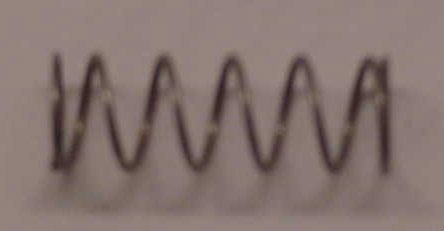

Compression springs

0.36" OD, 0.443" length
0.029" dia. Music Wire (ASTM-A228)
Free length - 1.00"
Load at length (0.433") - 3.38 lb [15.03 N]
Solid height - 0.221 in [5.61 mm]
Spring rate - 6.1 lb/in [1.068 N/mm]



Possible uses:

  1. Shock absorber
  2. Return spring for Decco solenoid
  3. Small projectile launcher
  4. Belt tensioner
  5. Fold-out parts

Tips:

To prevent buckling of the spring mount on a shaft about 10% smaller than the inside diameter of the spring.

Tools:

Do not modify in any way. Any modification is not recommended and may destroy the spring.

Examples:

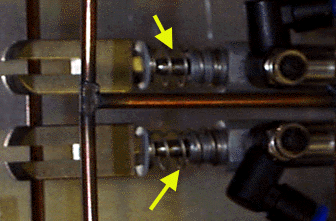

These compression springs are used to provide a "soft" travel stop on the pistons.
